Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.
Application Examples FYI
1) Single lane (channel)
2) Multiple lanes ( 2, 3, 4 or more channels, passageway required)
Related Products
Specification
Product Model
GAT-660
Product Size
1400*200*1000mm
Path width
in 600,900mm (for one pair)
Direction
single or bi-directional (optional)
Time of opening/closing
0.6 second
Pass speed
40 persons/min (open), 25-30 persons/min (closed)
Reset time after break down
10 seconds
Normal running life
3 million
Working environment
indoor/outdoor (with a tent over) -10℃~70℃
Drive motor
DC24V brush motor
Function Description
1.Directional LED Optical Signals: Green Arrow or RED Cross signage.
2.With fault self-check function and Alarm function, convenience for maintains.
3.Mechanism is specially processed ,more durable.
4.Always open or close modes, When Fire alarm on, The acrylics will retract automatically.
5.Ensures rapid, efficient & safe access control.
6.Individual installation interface, easy to integrated with Magnetic card, Barcode card, ID card, IC card etc.
7.Photo Electric Beams installed standard for all models.

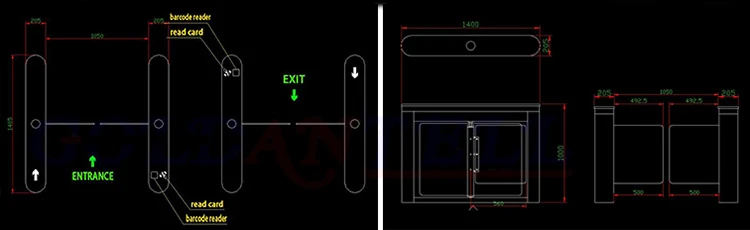

Dimension Drawing
Classification
Vertical shape
Bridge shape:this model
Pillar shape (or tube type)
Single motor and Double motor: single motor (suitable for single passageway and multiple passageway); Double motors (suitable for multiple passageways)
Similar & Top Selling Recommended
Recommendation reasons: elegant design, high operation performance, best economic cost
Professional & Safe Package

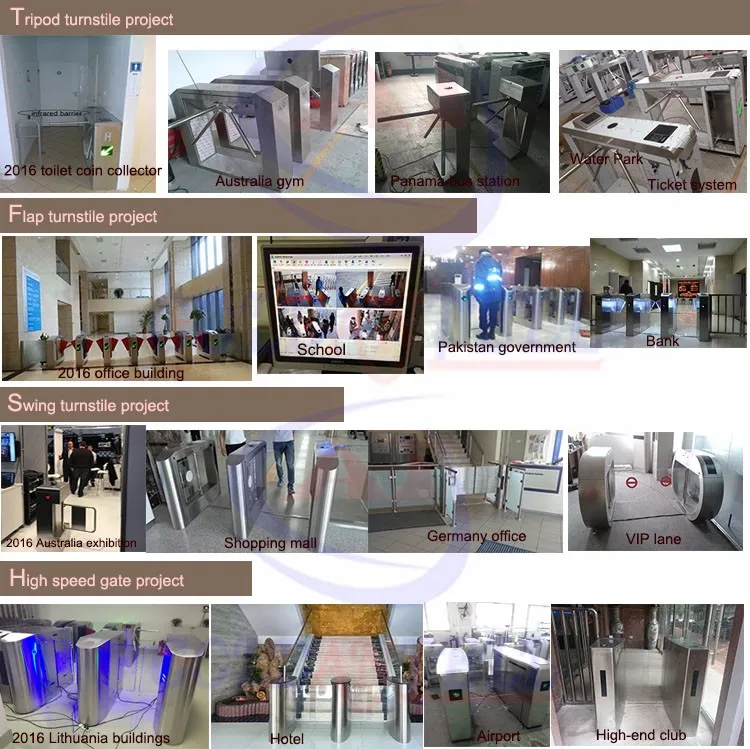

Goldantell Application Projects
Our service: Proper turnstile type can be soonest recommended according to your installation location to save your cost and time.
OEM/ODM Service
1. printing company logo: more elegant performance, to show company info.
2. customized design: the length & width & shape can be adjusted to make your satisfaction, for example, the led indicator and LCD display screen can
