304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record
Premium Products
304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record
1
2
3
4
Model Number :GAT-205
Brand Name :Goldantell
Place of Origin :Guangdong, China
MOQ :20
Price :$517
Barrier open time :0.2 s
Communication interface :RS-232, Rs485
Operation direction :2-Way
Barrier motor :Brushed Motor
Protection level :IP54
Power supply :110~240 Volt, 50/60 Hz
Working temperature :-25℃ ~ +70℃
Pass speed :40 Persons/min
Material :304 Stainless Steel
Size :1200*280*1000 mm
Gross weight :65KG
Flap opening time :within 1 second
Drive motor :DC 24v bruch motor
Passage width :60cm
Reset time :default 10s
Contact Now
Attendance record Turnstile with software system sdk or Barcode Ticket or RFID Card or Wristbond Control
Specification
Item NO.
GAT-206
Cabinet dimension
1200 (L) x 280 (W) x 1000 (H) mm
Cabinet material
304 stainless steel (316 ss can be custom-made)
Switching power supply
AC220±10%V 50Hz or AC110±10%V 60Hz
Flap opening/closing time
within 1 second
Drive Motor
DC 24v bruch motor
Passage width
60cm
Movement type
Single motor or dual-motor according to actual situation
Access mode
single in/out or Bidirectional
Optimal flow rate
40 persons/min (open), 25-30 persons/min (closed)
Reset time after break down
default 10s,can be changed to fit different demands
Working environment
indoor/outdoor (with a tent over) -10℃~70℃
Details Of Flap Barrier Gate Description
1. LED directional sign
a. without
b. with
2. Top LCD display screen
a. without
b.with
3. Flap Wing Color-- Blue, red ,more options
Packing & Shipping
Functions & Features
Unique two-way anti-reverse function.
Through the control board's built-in small press plate, programmable device's operating status.
Anti- rushing function gate signal is not received, the channel automatically lock brake stick.
Power rear channel automatically unlock, free rotation, to meet the fire safety requirements, channel lock automatically after power off.
With automatic reset function, gate, after a specified period of time insiders did not pass, the system will automatically cancel the access rights of pedestrians, the reset time is 1S ~ 60S Adjustable (system default time is 10S).
Can be used with access control systems, consumer systems, electronic ticket system, biometric systems, static tester and other equipment of convergence.
Can be unidirectional or bidirectional control of personnel access.
Can be directly through the management computer to realize remote control and management.
LED indicator light.
Box house can lengthen, can make custom design.
Normally open or closed can be adjust to meet the requirements of the different place.

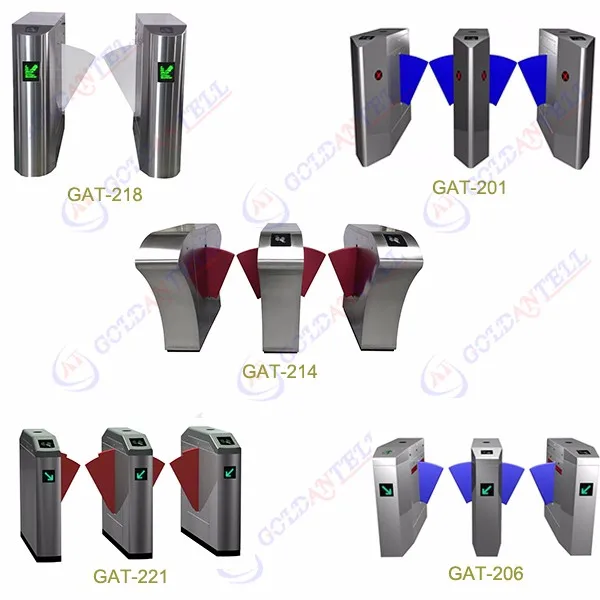

Hot-selling Shape

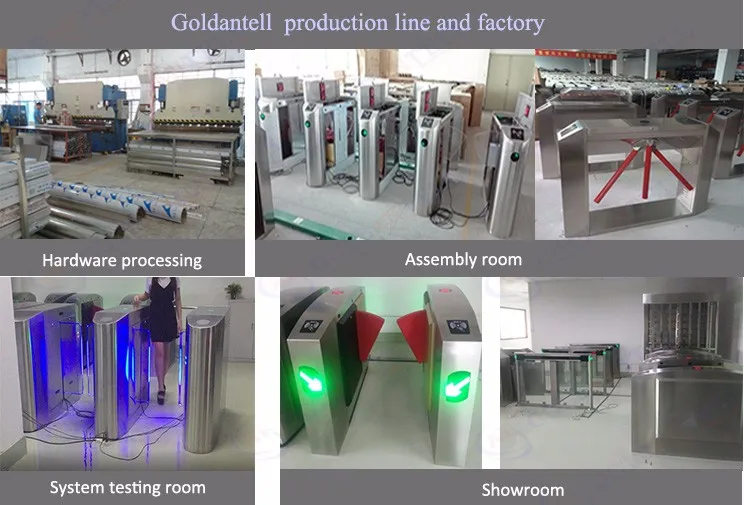

Company Information
Our Shenzhen Goldantell Technologies Co.,Ltd is a leading exporter and supply chain service provider of intelligent turnstile and parking management products with more than 8 years’ experience
Our main products include intelligent turnstiles,parking barrier, RFID card,sentry box, wheel clamp and other related security access control system and parking system. We have exported to more than 50 countries and built long term partnerships with clients.
Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.
FAQ
1-Can you do OEM service?
A: We offer below OEM services:
1) Can make customized design turnstile such as size,material,LED indicator shape or color,and so on. Even we can make a design according to your requirements
2) Can paint your logo on turnstiles, can customize the retail box packing and other things.
2-Can your turnstile work stable with different access control system,such as RFID card / fingerprint / QR code or Barcode / ESD test control system?
A: Of course,our intelligent turnstile is compatible with different access controller.Or, we can offer the access control software or system for best help.
3-How about the guarantee and after sale service?
A: We have 12 month quality guarantee, We own well-trained and passional sales & after- sale services who can speak fluent English language
4-How long is the leading time?
A: For standard item
10-50 sets:5 working days 50-100 sets:7-10 working days 200-500 sets:10-15 working days For special item, or need custom design package or logo, need 3-10 working days longer
5-How about the payment terms?
A:TT,western union,L/C,our company already joined the trade assurance,it will highly protect your order security.
6-How do you send the product to me,how long?
A: For sample,normaly send by air or express,about 3-5 days
For quantity purchase,normally by sea, it normally takes 7-60 days depend on different countries.
Why Choose Us
Our Pre-sale & after-sale service
1. pre-sale service: good communication to better understanding of your demand,advance provide product full info. 2. on-purchase service: keep updating the production process to you,send clear photos and testing video before shipment. 3. after-sale service: offer you the instruction, manual or detailed video to guide you quickly install and use the product. 4. OEM/ODM service: More than 10 years powerful ODM/OEM ability, customize logo, product size, color, etc 5. professional service: 16 hours online or off-line prompt response to your inquiry.
