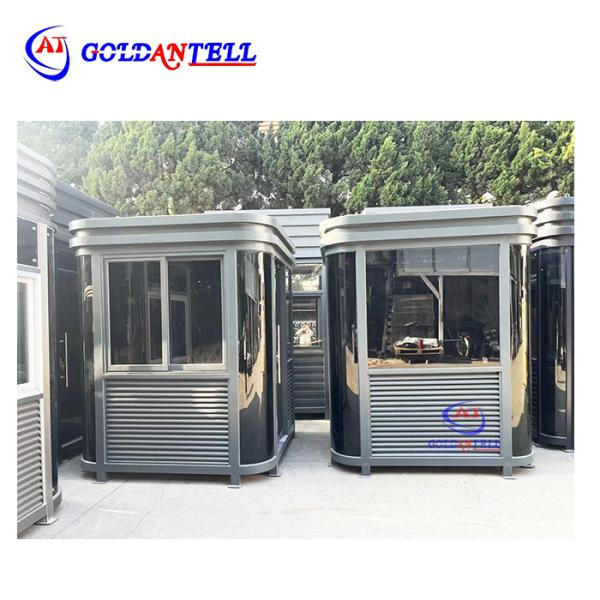

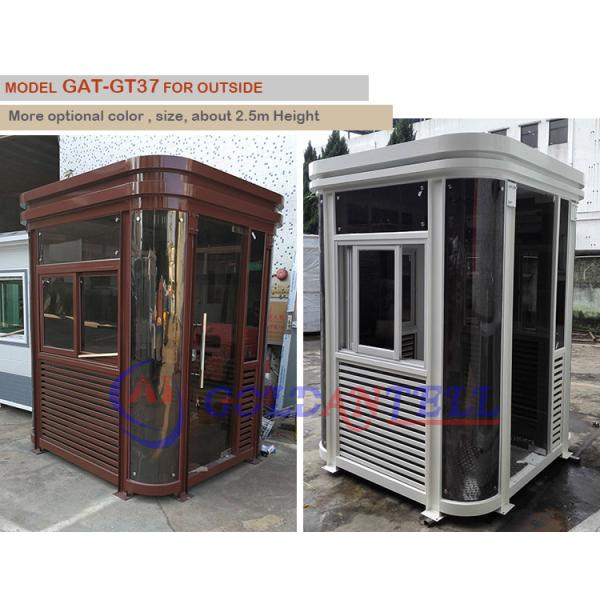

Steel Security Guard House 2000x2500mm Prefabricated Toll Booth

Good Air-Tight house prefabricated design Portable mobile ticket toll cashier booths / security guard house

Toll booth Specification (unit: mm)

Pls note:this type toll booth have two type options for you:

opetion one-complete item,can be used immediately once you receive them.

Option two: assembly type,each unit devided into 8 parts,need yourself install after you receive them.

Complete type Toll Booth

Assemble type Toll Booth

Materials and production processes

1. Support column with 80x80mm Square tube steel welding production, by electrostatic spraying into gray,beautiful, strong and durable.

2. The roof is made of high quality steel plate mechanical molding welding become the top shape,beautiful, strong enough.

3 . Main structure has five levels:

1)The frame with 80x40mm square steel welding frame;Outer wall to do flat shutter wall, lined with 8mm toughened glass.

2) Window for the aluminum alloy window, 5mm thick white glass, the arc angle fixed glass with 8mm thick curved glass, ceiling decorated with luxurious decorative ceiling, the ground is 2.5 thick anti-skid plate.

3) The door is made of tempered glass

4) welding seam neutral sealant, complete elimination of leaks and seepage.

5) Sentry box inside with fluorescent lights, power switch, 5-hole socket,Concealed wire,working table

Inner detail pictures of Toll Booth

--------Ceiling and LED lamp

---------socket

---------floor

Standard items inside of Toll Booth:

1) 3 power socket (it can connect with the electricity)

2) A light in the middle

3) Ticket window for transactions

4) Working desk with drawers and keyboard frame

5) Air-conditioner frame

6) Air-conditioner pipe whole

Operation place of Toll Booth:

Widely use around the commercial residential building,station, building construction,park, traffic center etc..

Bubble Package

Crate Package

Goldantell Car Parking Booth performance and advantages

Sentry box overall framework for the steel construction, durable, long service life of over 15 years, and can be customized with different specifications according to customer requirements.

1 . overall shape, durable, hasa strongearthquake, resistance to deformation;

2 . high-voltage electrostatic paint, never fade, never fade;

3 . Transportationoutsourcedcollisionscratchfoam,senttothecountrycanprotect intact;

4 . waterproof design and strict manufacturing process, good sealing performance, the complete elimination of leakage.

5 . Internal fully equipped, air-conditioned rack, fluorescent lamps, tables, drawers, electroniccontrol box, power supply and switch lights.

6 . Concealed wire, beautiful, safe, full protection leakage protection completely eliminate electricalsafety accident.

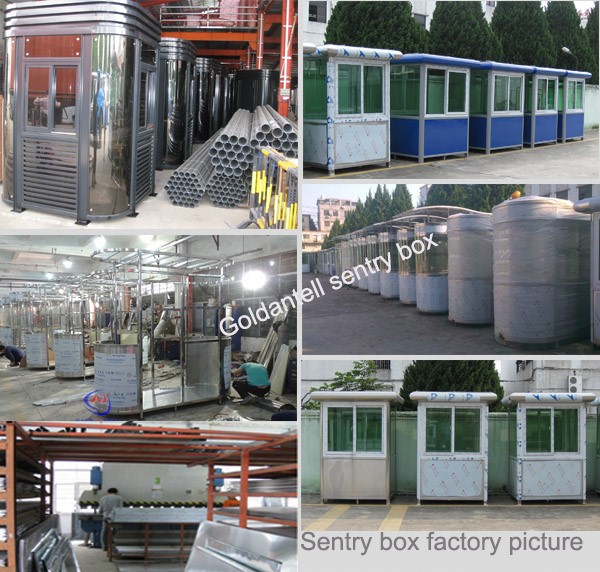

Goldantell Car Parking Booth factory

Row materials

Certificate

Delivery time

For standard item
10-50 sets:10 working days
50-100 sets:20 working days
200-500 sets:30 working days
For special item, or need custom design package or logo, need 3-10 working days longer
